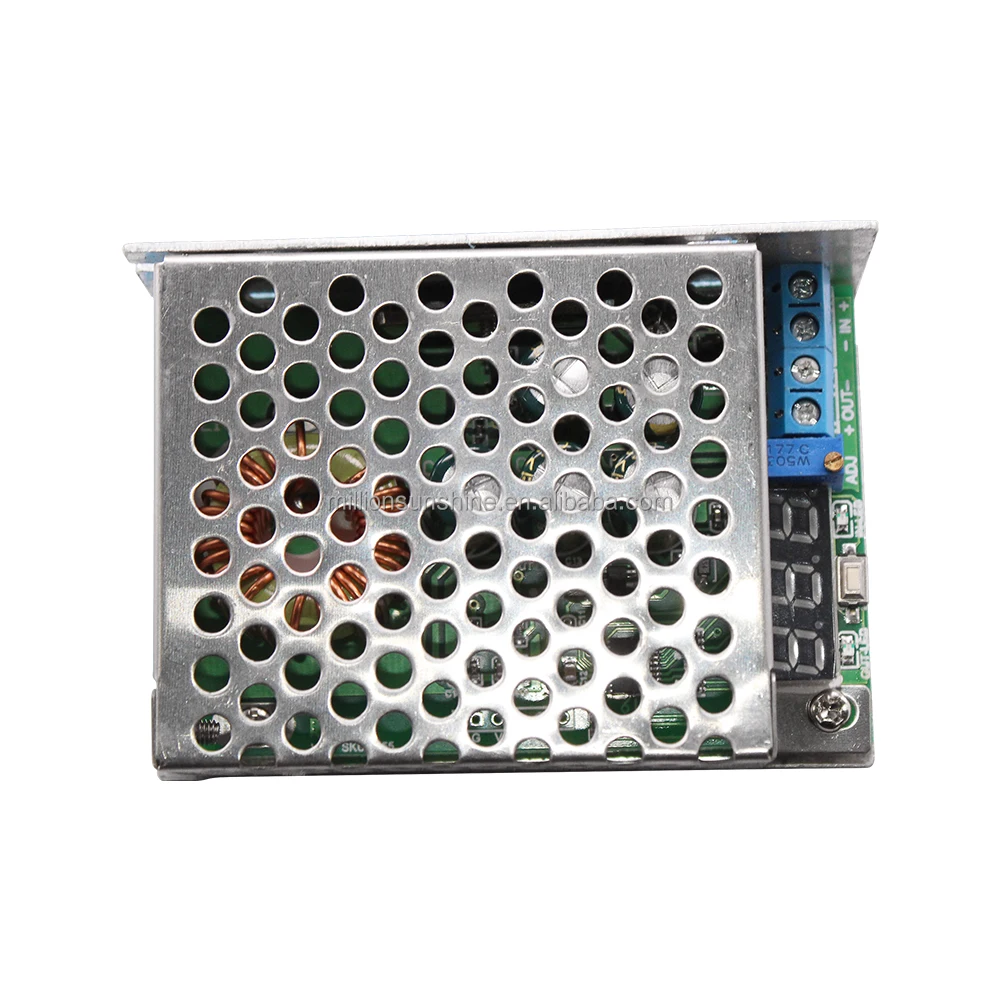

* Step down DC-DC Buck 3.5-30V to 0.8-29V Converter Power Supply module
* With 2.8" LED Voltmeter and Metal Case
* On-board voltage meter: can display input voltage Or output voltage (short press the button beneath the digital switch, the LED
lights marked IN is the input voltage measurement, LED beacon of light measurement OUT is the output voltage.)
* Voltage display factory calibrated, without additional calibration.
* Blue digital display, the quiescent current 2 -8mA (whether digital open-related)
* The voltmeter can be closed: Long press the switch for more than 1 seconds and less than 4 seconds, and then release the hand.
*
* Specification:
* With Aluminum shell
* Module Properties: Non-isolated step-down module with 2.8" LED Voltage meter.
* Input Voltage: 3.5-30V
* Inputs with 15A fuse
* Output Voltage: 0.8-29V(adjustable) (Note: This is a step-down board panels, require higher input voltage than the output
voltage of 1V or more)
* Output Current: 0 -10A (MAX)
* Conversion Efficiency: 92%(test on 24V to 12V 2A)
* Operating Temperature: -40 -85°C (ambient temperature exceeds 40°C, lower power use, or to enhance heat dissipation)
* Short Circuit Protection: None (Please Install fuses and protection circuits at Input port)
* Input Reverse Polarity Protection: None (Please Series diode at the input port)
* Size: 85*58*33mm/3.34*2.28*1.29"
*
* Application:
* DIY an output adjustable vehicle power supply, connect the 24V input, and output could be 5-12V(adjustable freely). However,
the output voltage can not be higher than the input voltage
* Car laptop power supply: Connected to 24V power supply, output voltage regulation as your notebook need
